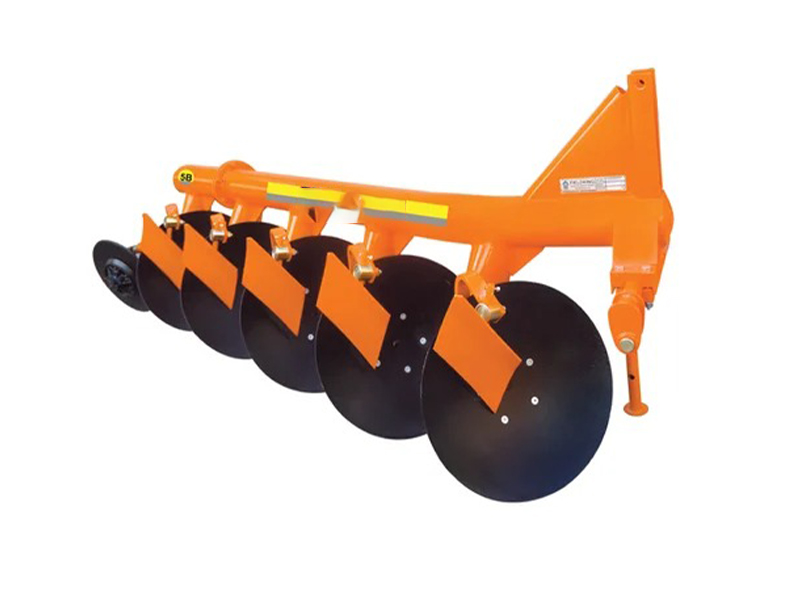

Disc Plough

Our mounted disc ploughs are designed to work in all types of soil for basic functions such as soil breaking, soil turning and soil raising. They are made of forged alloy steel and are heat treated to work efficiently in hard and dry trashy land conditions.

  • It is used to open the new fields and to process the stony areas.
  • It is being produced with 2-3-4 and 5 bottoms with an option for extra kit for furrow addition.
  • The disc plough is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing.
  •  It can be used easily at rocky and rooted areas.
  • Extra heavy-duty pipe frame has high trash clearance allowing the plough to operate despite heavy crop residue.
About

SPECIFICATION SMR-2 SMR-3 SMR-4 SMR-5
Frame Seamless Pipe
Drawbar Hexagonal
Axle Type Forged Spindle
No. of Disc 2 3 4 5
Type of Disc Notched & Plain (as per requirement)
Disc Diameter (mm / Inch) 660x6T (26″)
Disc Spacing (mm / Inch) 560 (22″)
No. of Bearing Hubs 2 3 4 5
Width of Cut (mm Approx.) 500-550 875-925 1150-1200 1575-1625
Mounted Category CAT-II
Weight Approx (Kg) 310 415 510 620
